Total: 186 results found.
Page 7 of 10
Auto Scrap Chopper 自動切廢料機
Details
- Independent driving,take little space.
- Easy to operate,easy to maitain and as sure of saft operation.
- Blade sharp,powerful,chop quietly and replace optionally.
| 自動切廢料機 Auto Scrap Chopper |
|||||
| 產品型號 Model |
ASC-80 | ASC-120 | ASC-150 | ASC-200 | ASC-300 |
| 最大材料寬度 Max. Material Width (mm) |
80 | 120 | 150 | 200 | 300 |
| 材料厚度 Material Thickness (mm) |
0.8 | 1.2 | 1.6 | 2 | 3 |
| 切料速度 Chop Speed (s.p.m.) |
96 | ||||
馬達 |
1/4 | 1/2 | 1 | 2 | 3 |
Automatic Tapping Machine 自動攻牙機
-
Details :
- Precise automatic thread pitch revolving,conveying and assmbling.
- Operator can leave the machine.
- Continuous speed cycle available,sturdy and durable.
- A beginner can operate it smoothly.
- High-precision tapping stroke,easy adjustment.
- Double safety unit prevents screw tapfrom wearing out.
- Multiple spindle tapping unit prouces high efficiency operation.
Specifications
| 自動攻牙機 Automatic Tapping Machine |
|||
| 產品型號 Model | WCT-310 | WCT-320 | WCT-330 |
| 單軸攻牙能力 Tapping capacity (mm) |
M1.6-M8 | M3-M16 | M5-M24 |
| 主軸最大行程 Max. Travel Of Spindle (mm) |
45 | 65 | 65 |
| 主軸轉速 Spindle (3∅50Hz*spm) |
1340,760,420 | ||
馬達 |
0.37 | 0.75 | 2.2 |
| 使用電源 Power |
3∅380V | ||
NOTCHING MACHINE (MAV Series)
AV SERIES SPECIFICATION
| MODEL | Capacity (mm) | Motor (hp) | Stroke (mm) | Cuttinging Angle (deg) | Table Height (mm) |
| MAV-0412 | 3 | 3 | 25 | 220 x 220 | 800 |
| MAV-0416 | 6 | 5 | 35 | 250 x 250 | 800 |
Reel Uncoiler 輕型自動材料架
-
Function:
- Practical and economical with simple mechanism.
- High reliability with easy maintenance.
Specifications
| 產品型號 Model |
RU-150A | RU-150B | RU-200A | RU-200B |
| 最大材料寬度 Max. Material Width (mm) |
150 | 200 | ||
| 料架荷重 Max. Coil Weight (kg) |
100 | 200 | ||
| 捲料內徑 Coil Inside Diameter (mm) |
220~420 | 290~420 | 200~420 | 290~420 |
| 捲料外徑 Coil Outside Diameter (mm) |
800 |
1000 | ||
送料速度 |
22 | |||
| 擴張方式 Expansion Method |
手動獨立 Independent |
手搖同步 Synchronous Manual |
手動獨立 Independent |
手搖同步 Synchronous Manual |
| 馬達 Motor (HP) |
1/4 | 1/2 | ||
Electronic Horizontal Reel 平面式電子控制材料架
-
Function:
- Automatic advancer to suit varied high speed punching process,high sensitivity material monitoring system to control feeding process synchronous to press.
- Easily maintain and make sure die and puncher lifetime to directly increase productivity.
-
Characteristic:
- Using palletizer coils to minimize material loading time and save man power to increase productivity.It is the best partner of technolgy industry and is pouplar used in terminal industry.
- New innovation rotate spindle universal designed to reduce coil loading plate friction to more smoothly and control box pole can be moved base on loading plate different diameter.
Specifications
| 平面式電子控制材料架
Electric Horizontal Reel |
|||
|---|---|---|---|
| 產品型號 Model |
EH-100 | EH-150 | EH-200 |
| 最大材料寬度 Max. Material Width (mm) |
85 | 100 | |
| 材料厚度 Material Thickness (mm) |
0.1~1.0 | ||
| 料架荷重 Max. Coil Weight (kg) |
1000 | 1500 | 2000 |
| 捲料外徑 Coil Outside Diameter (mm) |
1000 | ||
積載高度 |
600 | ||
| 送料速度 Feed Speed (m/min) |
30 | ||
| 馬達 Motor (HP) |
1/2 | 1 | |
Dual Head Cradle 雙頭材料架
Details
- Save material loading time to increase productivity.
- Suit to all kinds of straighteners.
- Can add motors and control system to become power cradle.
- Manual expansion is standard.Hydraulic expansion is option.
- Suit to high speed product like EI,motor sheets.
Specifications
| 雙頭材料架 Dual Head Cradle |
|||||
| 產品型號 Model |
DMU- | ||||
| 150 | 200 | 300 | 400 | 500 | |
| 最大材料寬度 Max. Material Width (mm) |
150 | 200 | 300 | 400 | 500 |
| 材料荷重 Max. Coil Weight (kg) |
300*2 | 500*2 | 800*2 | 1500*2 | 2000*2 |
| 捲料內徑 Coil Inside Diameter (mm) |
450~530 | ||||
| 捲料外徑 Coil Outside Diameter (mm) |
1200 | ||||
| 送料速度 Feed Speed (m/min) |
16 | ||||
擴張方式 |
手動式 Manual | ||||
| 馬達 Motor (HP) |
0.5HP*2 | 1HP*2 | 2HP*2 | ||
| 料架 Uncoiler |
主動(被動) With Motor (No Motor) | ||||
| 感應方式 Sensor Type |
接觸式 Touch | ||||
| 壓料裝置 Pinch |
無 No | ||||
Our Services
STATE-OF-THE-ART SERVICE FOR MORE PERFORMANCE
We provide expert support 24/7 in close cooperation with you – our partners. Our main priority is always to ensure the maximum productivity and safety of your production equipment in order to secure your company’s continued success.
With over 35 years of experience and expertise, we can guarantee the best possible support for the operation of your machines – and not only those supplied by Matsuki, but by all other manufactures. Whatever the situation, Matsuki Service has the right solution for your specific needs.
OUR SERVICES FOR YOU.
Technical Customer Support :
- Machine inspections
- Safety inspections
- Preventive maintenance
- Repair
- Repair welding
- Production support
Special Services :
- Service contracts
- Hotline and remote service
- Training
- Tailored customer training
- Optimizing plant & processes
- Consulting
Project Business :
- Modernization
- Retrofits
- Refurbishment
- Machine relocations
Components and Accessories :
- Spare parts and spare part packages
- Maintenance kits
- Repair parts
- Replacement parts
Used Machinery :
- Purchase and sale
- Evaluation
Company Profile
WELCOME TO MATSUKI

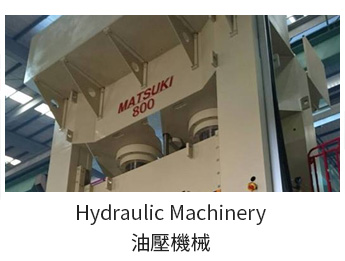

As the world’s premier sheet hydro forming production facility, MATSUKI specializes in offering cost effective solution to demanding hydraulic machine and the surrounding supporting. MATSUKI has more than three decades of experience in the hydraulic circuit and manufacture of many different types of hydraulic presses. Duo to high technology, also provide maintenance services for Europe, Japan and other countries of the hydraulic machine.
We are right at home when it comes to metal forming technology and we will work with you to develop the right system solutions. Throughout the process, we focus on innovative press technology, efficient automation components, flexible service and, of course, personal contact with metal forming specialists in your company.
MOLD FLIP DEVICE Introduction模具翻轉機 簡介/射出機.壓鑄機.中空成型機
模具翻轉機 /射出機.壓鑄機.中空成型機/適用
Taco / Azbil-Dual Solenoidvalve 雙聯電磁閥
IHI電動黃油加注器 IHI AUTO GREASE
| PIPE SIZE | MODEL |
|---|---|
| RC 3/8 | MVS-3503YCG |
| RC 1/2 | MVS-3504YCG |
| RC 3/4 | MVS-3506JYCG |
| RC 3/4 | MVS-3506YCG |
| RC 1 | MVS-3510YCG |
| RC1 1/4 | MVS-3512YCG |
| RC1 1/2 | MVS-3514YCG |
